+86 18038170771Saisheng can specially provide a steady testing environment（ Cabine para teste acústico）with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize Cabine para teste acústico with special size and fixture, and provide integrated testing system solutions.
Application of acoustic chamber
The main function and scope of application
Providing a sound insulation testing environment for products
Operation Mode | Pneumatic caisson acoustique |

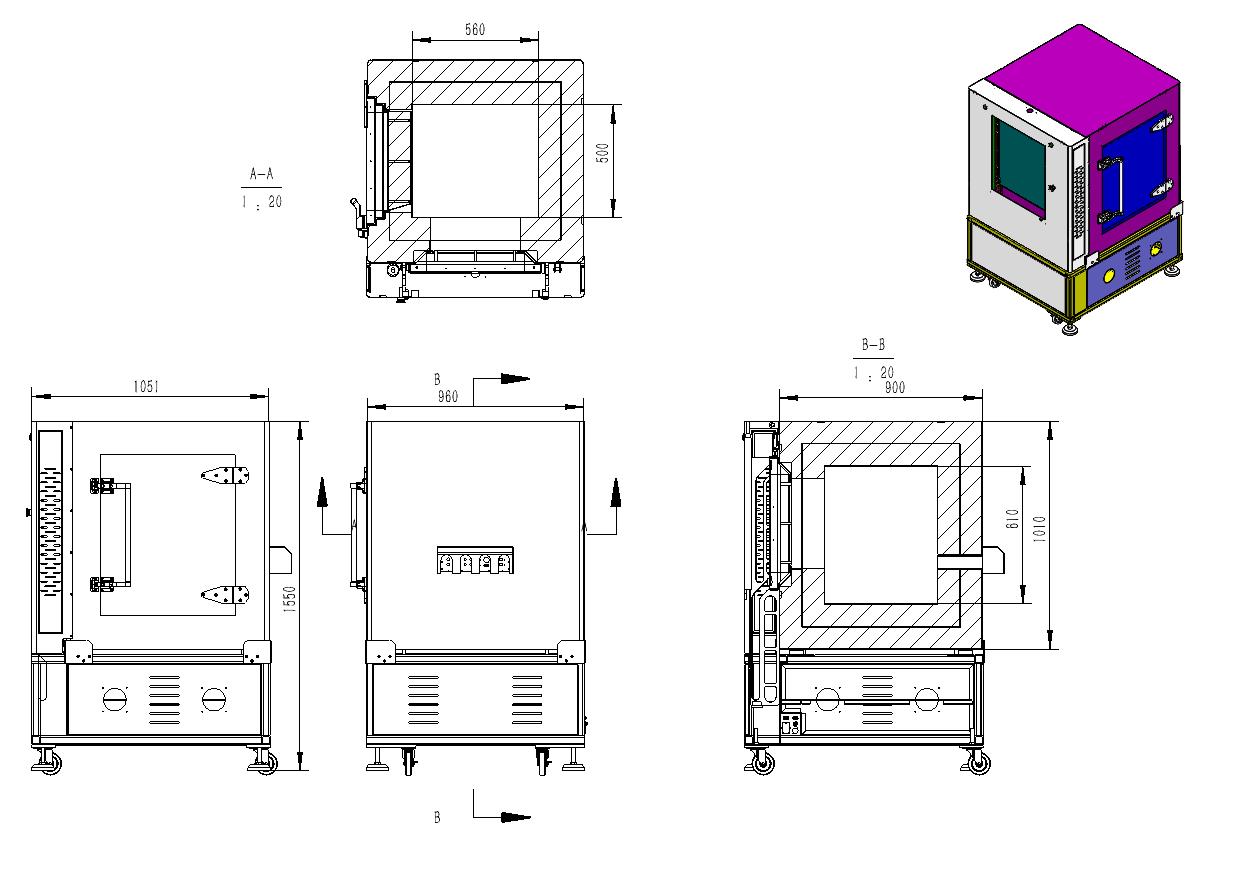

inner dimension | D500*W560*H610mm |
Material | metal plate |
Surface Color Weight | Grey white approx.580kg |

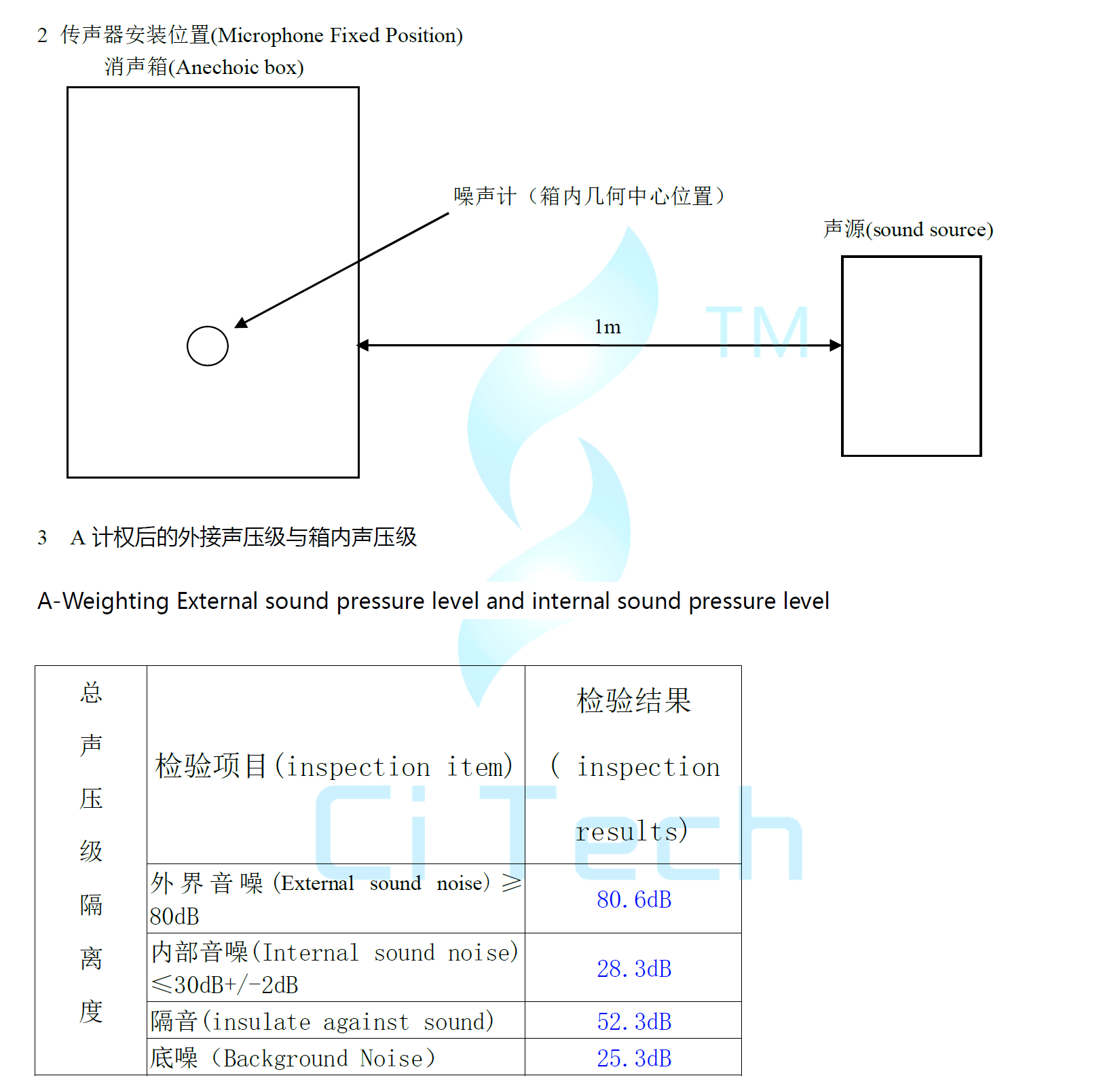

Soundproof solution of acoustic chamber | A-Weighting External sound pressure level and internal sound pressure level： outside 80dB(A) inside noise： ≤30dB |
I/O(connector)acoustic chamber | BNC*6,USB3.0*2,DC*2,XLR*2；or Reserve a cable hole(30MM)（According to the customer request ） |
